CFW weekly builds

Alle APIs oder Firmwares für den TXT: Community-Firmware, .net, C++, usw.
Forumsregeln
Bitte beachte die Forumsregeln!

Re: CFW weekly builds

Beitragvon ski7777 » 22 Sep 2017, 19:53

PHabermehl hat geschrieben:Toppp !!!!

Hoffe, Du hast auch gleich ne Doku gemacht :-)

Gruß
Peter


Tatsächlich nein :roll: . Aber im Userspace ist es 1:1 ftrobopy
Benutzeravatar
ski7777

Beiträge: 809
Registriert: 22 Feb 2014, 15:18
Wohnort: Saarwellingen
Alter: 16

Re: CFW weekly builds

Beitragvon PHabermehl » 22 Sep 2017, 19:55

Sehr gut... Ich habe morgen ein Hühnchen mit dir zu rupfen :mrgreen:
PHabermehl

Beiträge: 942
Registriert: 20 Dez 2014, 23:59
Wohnort: Bad Hersfeld
Alter: 46

Re: CFW weekly builds

Beitragvon PHabermehl » 22 Sep 2017, 20:43

Sry, doppelt gepostet
PHabermehl

Beiträge: 942
Registriert: 20 Dez 2014, 23:59
Wohnort: Bad Hersfeld
Alter: 46

Re: CFW weekly builds

Beitragvon ski7777 » 28 Sep 2017, 16:28

fttxpy gibt es nach meinem Urlaub
Benutzeravatar
ski7777

Beiträge: 809
Registriert: 22 Feb 2014, 15:18
Wohnort: Saarwellingen
Alter: 16

Re: CFW weekly builds

Beitragvon PHabermehl » 29 Sep 2017, 20:57

weekly build for wk1739 available:

https://github.com/ftCommunity/ftcommun ... 20170929-2


just a minor update, only noticeable change is a layout change to the TouchAuxiliary.py internal keyboard (used in some apps)...

Oh, and Richard just told me how to rotate the screen to landscape orientation:
Log into your TXT using ssh. Then
Code: Alles auswählen
sudo nano /etc/default/launcher

and enter the desired screen rotation (0/90/180/270)
Code: Alles auswählen
SCREEN_ROTATION=xx

Save the file and restart the launcher by issueing
Code: Alles auswählen
sudo /etc/init.d/S90launcher restart


Thanks, Richard!





PS. looks like startIDE is the first app to have a dedicated screen layout for both portrait and landscape screens :mrgreen:
Zuletzt geändert von PHabermehl am 30 Sep 2017, 22:52, insgesamt 2-mal geändert.
PHabermehl

Beiträge: 942
Registriert: 20 Dez 2014, 23:59
Wohnort: Bad Hersfeld
Alter: 46

Re: CFW weekly builds

Beitragvon PHabermehl » 30 Sep 2017, 22:05

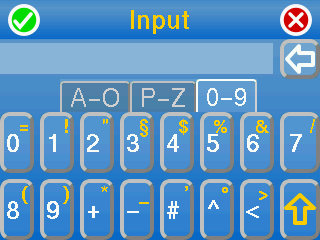

Please be aware that the landscape oriented on-screen keyboard is NOT contained in yesterday's build. It will be part of the next weekly build.
PHabermehl

Beiträge: 942
Registriert: 20 Dez 2014, 23:59
Wohnort: Bad Hersfeld
Alter: 46

Re: CFW weekly builds

Beitragvon PHabermehl » 06 Okt 2017, 11:28

weekly build for wk1740 available at[/b]

https://github.com/ftCommunity/ftcommun ... t-20171005

Big news behind a small icon:


Use the Display config to calibrate your touchscreen or to rotate the display:

PHabermehl

Beiträge: 942
Registriert: 20 Dez 2014, 23:59
Wohnort: Bad Hersfeld
Alter: 46

Re: CFW weekly builds

Beitragvon PHabermehl » 27 Okt 2017, 00:00

weekly build for wk1743 available @ https://github.com/ftCommunity/ftcommun ... t-20171026
PHabermehl

Beiträge: 942
Registriert: 20 Dez 2014, 23:59
Wohnort: Bad Hersfeld
Alter: 46

Re: CFW weekly builds

Beitragvon PHabermehl » 03 Nov 2017, 18:23

weekly build for wk1744 available @ https://github.com/ftCommunity/ftcommun ... t-20171103
PHabermehl

Beiträge: 942
Registriert: 20 Dez 2014, 23:59
Wohnort: Bad Hersfeld
Alter: 46

Re: CFW weekly builds

Beitragvon hvn » 22 Nov 2017, 11:36

Nice to see that the development continues. Question though: since the installation of 0.9.3 on 1 of my TXT's, the motors and taking images aren't working anymore. On my other TXT with 0.9.2-4, everything runs nice. Since I don't like downgrading cfw, which 0.9.4 version should I take as it's not branded as stable?

hvn
hvn

Beiträge: 190
Registriert: 20 Feb 2011, 12:15

Re: CFW weekly builds

Beitragvon PHabermehl » 22 Nov 2017, 11:41

Hello Huub,
What do you mean by "the Motors aren't working anymore?" I'm quite surprised because we never had any complaints. Even my Models at Dreiech ran with 0.9.3, so both, camera and motors are known to work... What exactly do you do?
Kind regards
Peter
PHabermehl

Beiträge: 942
Registriert: 20 Dez 2014, 23:59
Wohnort: Bad Hersfeld
Alter: 46

Re: CFW weekly builds

Beitragvon hvn » 22 Nov 2017, 11:49

My problem is that the code I use for running my walking model works great on the default fw, but not on the cfw. I've checked using an oscilloscope, but there's no signal at all coming from the motor outputs when the cfw runs. With the camera, I know both controller and camera work on the default fw but there's no image grabbed on the cfw: pic = txt.getCameraFrame() comes back empty with both ft-cameras. I've mentioned this in a different thread some time ago but got no response yet.
hvn

Beiträge: 190
Registriert: 20 Feb 2011, 12:15

Re: CFW weekly builds

Beitragvon richard.kunze » 23 Nov 2017, 13:50

Hello Huub,

hvn hat geschrieben:My problem is that the code I use for running my walking model works great on the default fw, but not on the cfw. I've checked using an oscilloscope, but there's no signal at all coming from the motor outputs when the cfw runs.

How do you initialize ftrobopy? I'm guessing that you use something like
Code: Alles auswählen
txt = ftrobopy.ftrobopy("localhost", 65000)


If yes: Change this to
Code: Alles auswählen
txt = ftrobopy.ftrobopy("auto")
to make it work with cfw 0.9.3 and up.
richard.kunze

Beiträge: 493
Registriert: 27 Dez 2015, 00:49
Wohnort: Rhein-Main-Gebiet
Alter: 49

Re: CFW weekly builds

Beitragvon Torsten » 23 Nov 2017, 21:29

Hi Huub,

hvn hat geschrieben:[...]there's no image grabbed on the cfw: pic = txt.getCameraFrame() comes back empty with both ft-cameras. I've mentioned this in a different thread some time ago but got no response yet.


- when running the cfw the ft-GUI has to be started before any ftrobopy camera function (startCameraOnline, stopCameraOnline, getCameraFrame) can be used.

- ftrobopy camera functions and openCV camera functions cannot be used at the same time

If you stick to these rules, camera I/O works fine in the cfw. I never had any problems there, neither in the 0.9.3. nor in the 0.9.4 version of the cfw.

Best wishes,
Torsten
Torsten

Beiträge: 168
Registriert: 29 Jun 2015, 23:08
Wohnort: Gernsheim (Rhein-Main-Region)
Alter: 48

Re: CFW weekly builds

Beitragvon hvn » 29 Nov 2017, 12:01

Torsten hat geschrieben:- when running the cfw the ft-GUI has to be started before any ftrobopy camera function (startCameraOnline, stopCameraOnline, getCameraFrame) can be used.


Now both camera functions and the motors work again, when the ft-GUI shows on the display. But this is not how it works on my other TXT running 0.9.2-x: I can just run it no matter which GUI shows. So has this indeed changed since?

hvn
hvn

Beiträge: 190
Registriert: 20 Feb 2011, 12:15

Re: CFW weekly builds

Beitragvon ski7777 » 29 Nov 2017, 15:19

From 0.9.2 to 0.9.3 we disabled the ft-gui background service.
Benutzeravatar
ski7777

Beiträge: 809
Registriert: 22 Feb 2014, 15:18
Wohnort: Saarwellingen
Alter: 16

Re: CFW weekly builds

Beitragvon PHabermehl » 03 Dez 2017, 00:10

Weekly build for wk1748 available here:

https://github.com/ftCommunity/ftcommunity-TXT/releases/tag/v0.9.4-dev.snapshot-20171202

Most important part of the update is the removal of some unused stuff to save on memory.
PHabermehl

Beiträge: 942
Registriert: 20 Dez 2014, 23:59
Wohnort: Bad Hersfeld
Alter: 46

Re: CFW weekly builds

Beitragvon PHabermehl » 15 Dez 2017, 21:56

PHabermehl

Beiträge: 942
Registriert: 20 Dez 2014, 23:59
Wohnort: Bad Hersfeld
Alter: 46

Re: CFW weekly builds

Beitragvon chehr » 16 Dez 2017, 23:40

Hi Peter,
vielen Dank für deine Arbeit.
Gruß
Christian
chehr

Beiträge: 157
Registriert: 07 Apr 2015, 21:07
Wohnort: Friedrichshafen

Re: CFW weekly builds

Beitragvon PHabermehl » 21 Dez 2017, 23:36

Weekly build for Wk1751:

https://github.com/ftCommunity/ftcommunity-TXT/releases/tag/v0.9.4-dev.snapshot-20171221

New:
ftduino supported as I/O extension via ftduino_direct.py

ftduino info: https://github.com/harbaum/ftduino/
ftduino_direct: https://github.com/PeterDHabermehl/ftduino_direct (the python module is now part of the cfw, you just have to flash ftduino_direct.ino to your ftduino)
PHabermehl

Beiträge: 942
Registriert: 20 Dez 2014, 23:59
Wohnort: Bad Hersfeld
Alter: 46
